Specifications | |
Product code | CRS354-48G-4S+2Q+RM |
Architecture | MIPSBE |
CPU | QCA9531 |
CPU core count | 1 |
CPU nominal frequency | 650 MHz |
Dimensions | 297 x 443 x 44 mm |
RouterOS license | 5 |
Operating System | RouterOS v7 / SwitchOS |
Size of RAM | 64 MB |
Storage size | 16 MB |
Storage type | FLASH |
MTBF | Approximately 200'000 hours at 25C |
Tested ambient temperature | -20°C to 60°C |
Powering | |
Number of AC inputs | 2 |
AC input range | 100-240 |
Max power consumption | 60 W |
Max power consumption without attachments | 50 W |
FAN count | 3 |
Ethernet | |
10/100 Ethernet ports | 1 |
10/100/1000 Ethernet ports | 48 |
Fiber | |

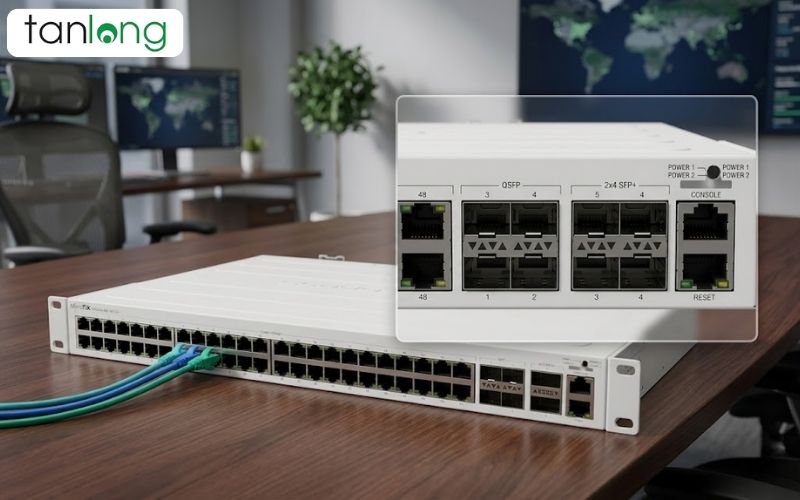

SFP+ ports | 4 |
Number of 40G QSFP+ ports | 2 |
Peripherals | |
Serial console port | RJ45 |
Other | |
CPU temperature monitor | Yes |
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
Certification & Approvals | |
Certification | CE, EAC, ROHS |
IP | IP20 |
Included parts | - 2x IEC cords - Cable managment brackets - Rackmount ears (CRS354) - K-48 fastening set |
CRS354-48G-4S+2Q+RM | |||||||
Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
Switching | Non blocking Layer 2 throughput | 13662.2 | 165914.0 | 39497.2 | 161780.5 | 250148.8 | 128076.2 |
Switching | Non blocking Layer 2 capacity | 13662.2 | 331828.1 | 39497.2 | 323560.9 | 250148.8 | 256152.4 |
Switching | Non blocking Layer 1 throughput | 13662.2 | 168100.0 | 39497.2 | 168100.0 | 250148.8 | 168100.0 |
Switching | Non blocking Layer 1 capacity | 13662.2 | 336200.0 | 39497.2 | 336200.0 | 250148.8 | 336200.0 |
Routing | none (L3HW) | 9752.9 | 118439.5 | 28195.5 | 115488.7 | 160513.7 | 82183.0 |
Routing | 25 ip filter rules (Fasttrack L3HW) | 5581.7 | 67784.7 | 14776.3 | 60523.8 | 80145.85 | 41034.6 |
CRS354-48G-4S+2Q+RM | QCA9531 all port test | ||||||
Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
Bridging | none (fast path) | 37,4 | 454.2 | 82,8 | 339.1 | 162,5 | 83.2 |
Bridging | 25 bridge filter rules | 33,8 | 410.5 | 47,8 | 195.8 | 75,6 | 38.7 |
Routing | none (fast path) | 37,2 | 451.8 | 73,3 | 300.2 | 144,9 | 74.2 |
Routing | 25 simple queues | 36,4 | 442.0 | 52,4 | 214.6 | 54,4 | 27.9 |
Routing | 25 ip filter rules | 33,8 | 410.5 | 41,4 | 169.6 | 41,7 | 21.4 |
