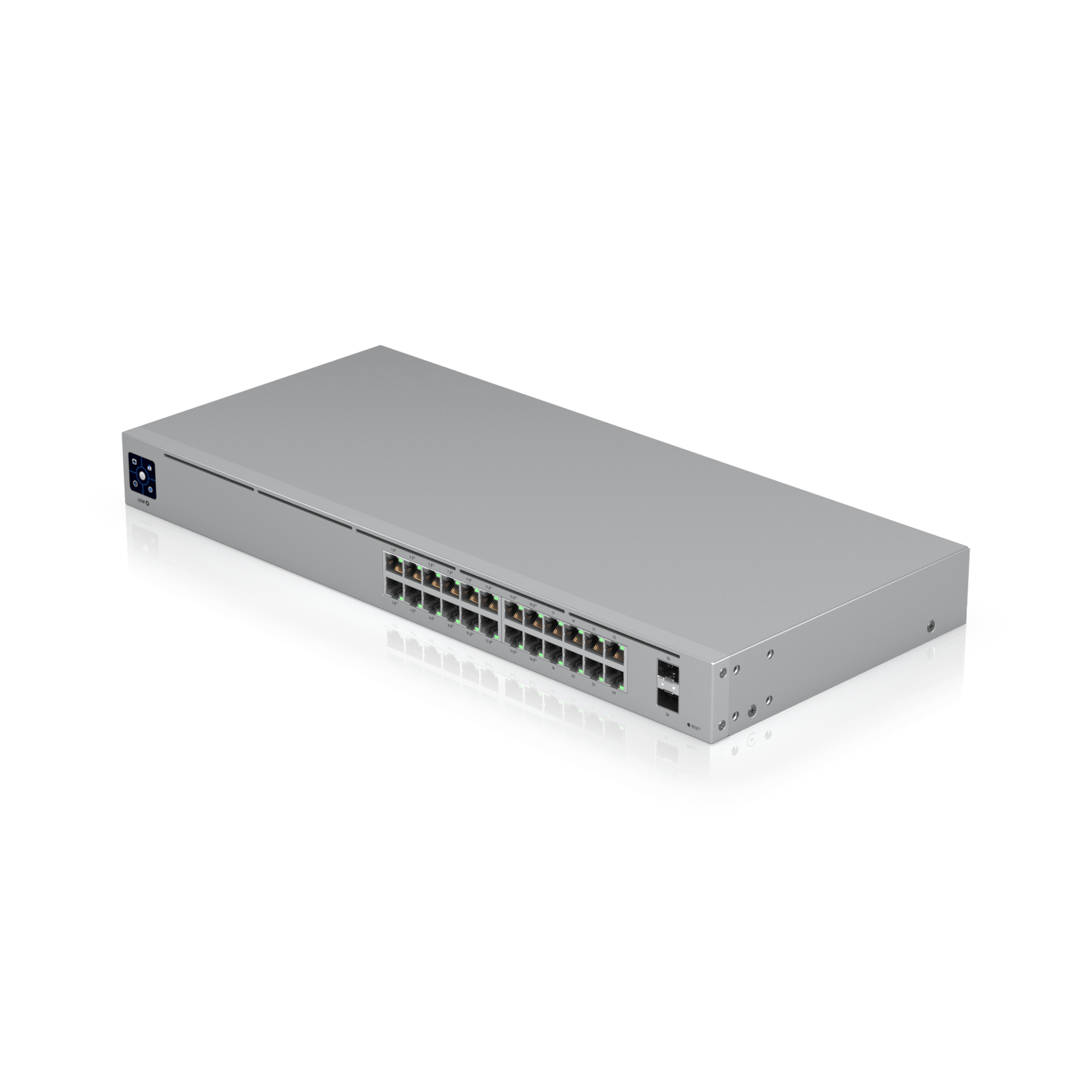

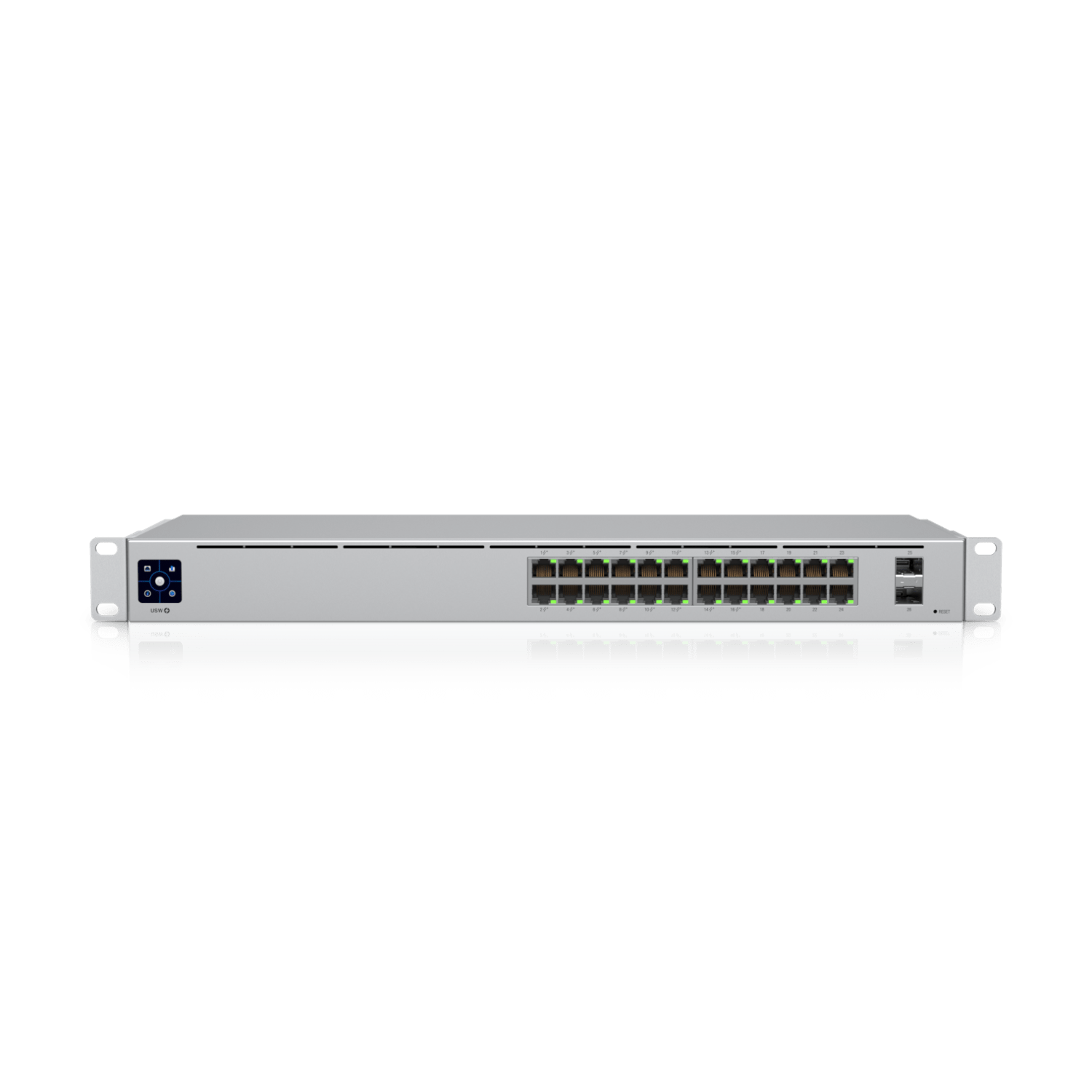

Switch Unifi Standard 24 PoE (USW 24 POE)

Liên hệ

KHUYẾN MÃI

Giao hàng siêu tốc trong nội thành Hà Nội & Sài Gòn.

Cài đặt, hướng dẫn sử dụng miễn phí toàn quốc.

Miễn phí giao hàng toàn quốc.

Cam kết chính hãng, nguyên hộp mới 100%.

Đổi mới trong vòng 7 ngày nếu lỗi.

Nếu quý khách ngại đặt hàng. Hãy gọi 0987.66.11.88 để mua hàng nhanh nhất

Công tắc PoE 24 cổng, Lớp 2 với hệ thống làm mát không quạt.
(16) cổng GbE PoE +, (8) GbE (2) Cổng SFP 1G Tổng số PoE sẵn có 95W Làm mát không quạt, im lặng
Mechanical
Dimensions 442 x 200 x 44 mm (17.4 x 7.9 x 1.7")
Weight Without mounting brackets: 3 kg (6.6 lb) With mounting brackets: 3.1 kg (6.8 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (24) GbE RJ45 ports (2) 1G SFP ports
PoE interface (16) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput 26 Gbps
Switching capacity 52 Gbps
Forwarding rate 38.69 Mpps
Power method Universal input, 100—240V AC, 50/60 Hz
Power supply AC/DC, internal, 120W
Supported voltage range 100—240V AC
Max. power consumption 25W (Excluding PoE output)
Total available PoE 95W
Max. PoE wattage per port by PSE PoE+: 32W
Voltage range PoE mode PoE: 44—57V PoE+: 50—57V
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
LCM display (1) 1.3" touchscreen
Button Factory reset
Shock and vibration ETSI300-019-1.4 Standard
Ambient operating temperature -5 to 40° C (23 to 104° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs
Layer 3 features
LEDs
System Status
Ethernet PoE Speed/link/activity
SFP Link/activity
Application Requirements
UniFi Network Version 7.2.94 and later
