Thiết bị tường lửa Fortinet FG-101F

Hàng:
Chính hãng

Liên hệ

Giá dự án, số lượng lớn: liên hệ để nhận báo giá tốt nhất.

Mua ngayGọi điện xác nhận và giao hàng tận nơi
Firewall Throughput (1518 / 512 / 64 byte, UDP)
20 / 18 / 10 Gbps
GE RJ45 Ports
12
Power Consumption (Average / Maximum)
35.3 W / 39.1 W
Client-to-Gateway IPsec VPN Tunnels
16,000

Xem đầy đủ thông số kỹ thuật →

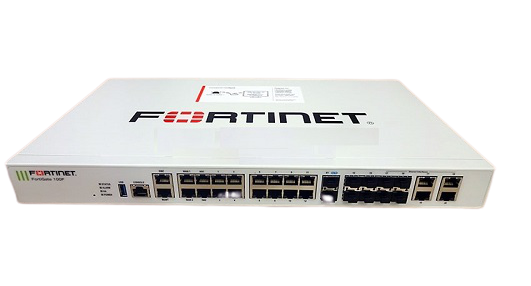

FG-101F Firewall Fortinet Fortigate 100F series

Fortigate FG-101F 22x GE RJ45 ports including 2x WAN ports, 1x DMZ port, 1x Mgmt port, 2x HA ports, 16x switch ports with 4 SFP port shared media, 4 SFP ports, 2x 10 GE SFP+ FortiLinks, dual power supplies redundancy.

Thông số kỹ thuật Firewall FortiGate FG-101F

Interfaces and Modules
GE RJ45 Ports 12
GE RJ45 Management/HA/DMZ Ports 1 / 2 / 1
GE SFP Slots 4
10 GE SFP+ Slots 2
GE RJ45 WAN Ports 2
GE RJ45 or SFP Shared Ports 4
Console Port 1
Internal Storage 1x 480 GB SSD
USB Port 1
System Performance and Capacity
Firewall Throughput (1518 / 512 / 64 byte, UDP) 20 / 18 / 10 Gbps
Firewall Latency (64 byte, UDP) 5 μs
Firewall Throughput (Packet per Second) 15 Mpps
Concurrent Sessions (TCP) 1.5 Million
New Sessions/Sec (TCP) 56,000
Firewall Policies 10,000
IPsec VPN Throughput (512 byte) 11.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 2,500
Client-to-Gateway IPsec VPN Tunnels 16,000
SSL-VPN Throughput 1 Gbps
Concurrent SSL-VPN Users 500
SSL Inspection Throughput (IPS, HTTP) 1 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) 1,800
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 135,000
Application Control Throughput (HTTP 64K) 2.2 Gbps
CAPWAP Throughput (1444 byte, UDP) 15 Gbps
Virtual Domains (Default / Maximum) 10 / 10
Maximum Number of Switches Supported 24
Maximum Number of FortiAPs (Total / Tunnel Mode) 128 / 64
Maximum Number of FortiTokens 1,000
Maximum Number of Registered FortiClients 600
High Availability Configurations Active / Active, Active / Passive, Clustering
System Performance — Enterprise Traffic Mix
IPS Throughput 2.6 Gbps
NGFW Throughput 1.6 Gbps
Threat Protection Throughput 1 Gbps
Dimensions and Power
Height x Width x Length (inches) 1.73 x 17 x 10
Height x Width x Length (mm) 44 x 432 x 254
Weight 7.56 lbs (3.43 kg)
Form Factor Rack Mount, 1 RU
Environment
Power Required 100–240V AC, 50-60
Maximum Current 100V / 1A, 240V / 0.5A
Power Consumption (Average / Maximum) 35.3 W / 39.1 W
Heat Dissipation 121.13 BTU/h
Redundant Power Supplies Yes
Operating Temperature 32–104°F (0–40°C)
Storage Temperature -31–158°F (-35–70°C)
Operating Altitude Up to 7,400 ft (2,250 m)
Humidity 10–90% non-condensing
Noise Level 40.4 dBA
Compliance FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6
