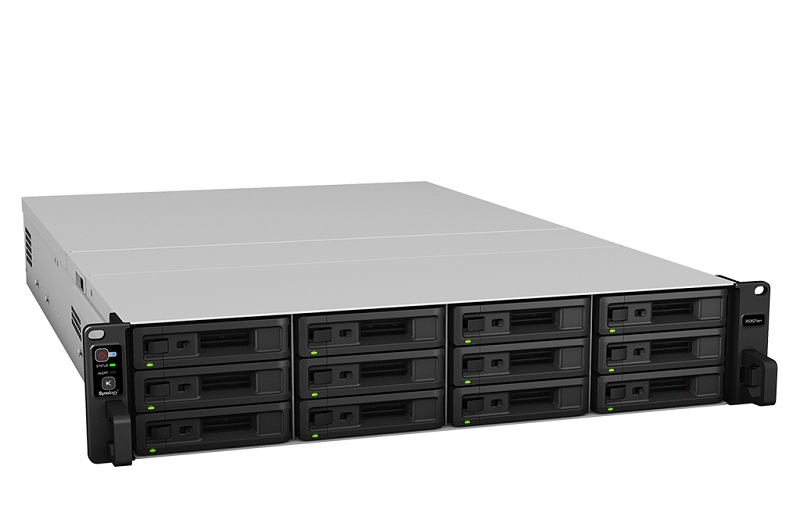

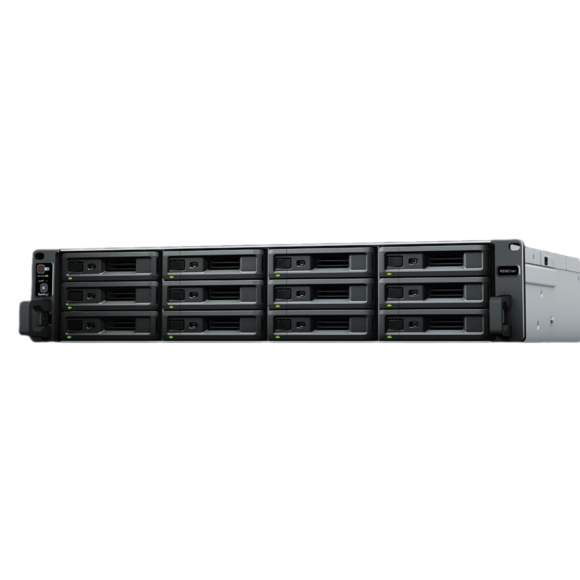

Thiết bị lưu trữ NAS Synology RS3618xs

Liên hệ

KHUYẾN MÃI

Giao hàng siêu tốc trong nội thành Hà Nội & Sài Gòn.

Cài đặt, hướng dẫn sử dụng miễn phí toàn quốc.

Miễn phí giao hàng toàn quốc.

Cam kết chính hãng, nguyên hộp mới 100%.

Đổi mới trong vòng 7 ngày nếu lỗi.

Nếu quý khách ngại đặt hàng. Hãy gọi 0987.66.11.88 để mua hàng nhanh nhất

Liên hệ báo giá tốt
Tư vấn + báo giá chi tiết sản phẩm

Nội dung Chi Tiết
Thông số kỹ thuật

Hardware Specifications
CPU
CPU Model	Intel Xeon D-1521
CPU Architecture	64-bit
CPU Frequency	Quad Core 2.4 (base) / 2.7 (turbo) GHz
Hardware Encryption Engine (AES-NI)
Memory
System Memory	8 GB DDR4 ECC UDIMM
Memory Module Pre-installed	8GB (1 x 8GB)
Total Memory Slots	4
Memory Expandable up to	64 GB (16 GB x 4)
Storage
Drive Bays	12
Maximum Drive Bays with Expansion Unit	36
Compatible Drive Type*	3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD
Maximum Internal Raw Capacity	144 TB (12 TB drive x 12) (Capacity may vary by RAID types)
Maximum Raw Capacity with Expansion Units	432 TB (144 TB + 12 TB drive x 24) (Capacity may vary by RAID types)
Maximum Single Volume Size	200 TB (32GB RAM required, for RAID 5 or RAID 6 groups only) 108 TB
Hot Swappable Drive
External Ports
RJ-45 1GbE LAN Port	4 (with Link Aggregation / Failover support)
USB 3.0 Port	2
Expansion Port	2
PCIe
PCIe Expansion	2 x Gen3 x8 slots (x8 link)
Add-in-card support	PCIe Network Interface Card
File System
Internal Drives	Btrfs EXT4
External Drives	Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT*
Notes	exFAT Access is purchased separately in Package Center.
Appearance
Size (Height x Width x Depth)	88 mm x 430.5 mm x 692 mm
Weight	14.5 kg
Others
System Fan	80 mm x 80 mm x 4 pcs
Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
Easy Replacement System Fan
Power Recovery
Noise Level*	50.2 dB(A)
Scheduled Power On/Off
Wake on LAN/WAN
Power Supply Unit / Adapter	500W
AC Input Power Voltage	100V to 240V AC
Power Frequency	50/60 Hz, Single Phase
Power Consumption*	142.76 W (Access) 55.05 W (HDD Hibernation)
British Thermal Unit	487.12 BTU/hr (Access) 187.84 BTU/hr (HDD Hibernation)
Environment Temperature
Operating Temperature	5°C to 35°C (40°F to 95°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Relative Humidity	5% to 95% RH
Certification	EAC VCCI CCC RCM FCC Class A CE Class A BSMI Class A
Warranty	5 Years
Notes	Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s). Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
DSM Specifications
Storage Management
Maximum Internal Volume Number	1024
Maximum iSCSI Target Number	64
Maximum iSCSI LUN	512
iSCSI LUN Clone/Snapshot, Windows ODX
SSD Read/Write Cache
SSD TRIM
RAID Group
Supported RAID Type	RAID F1 Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10
RAID Migration	Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6
Volume Expansion with Larger HDDs	RAID F1 RAID 1 RAID 5 RAID 6
Volume Expansion by Adding a HDD	RAID F1 RAID 5 RAID 6 JBOD
Global Hot Spare Supported RAID Type	RAID F1 RAID 1 RAID 5 RAID 6 RAID 10
File Sharing Capacity
Maximum Local User Accounts	16000
Maximum Local Groups	512
Maximum Shared Folder	512
Maximum Shared Folder Sync Tasks	16
Maximum Concurrent CIFS/AFP/FTP Connections	2000
Windows Access Control List (ACL) Integration
NFS Kerberos Authentication
High Availability Manager
Log Center
Syslog Events per Second	3000
Virtualization
VMware vSphere 6 with VAAI
Windows Server 2012
Windows Server 2012 R2
Citrix Ready
OpenStack
Add-on Packages
Antivirus by McAfee (Trial)
Central Management System
Chat
Maximum Users	4000
Notes	The number of concurrent HTTP connections for Chat was configured to the maximum. CPU and RAM usage were both under 80% when the number of maximum users was reached. For tested models with expandable memory, the maximum amount of RAM was installed.
Cloud Station Server
Maximum Number of Concurrently Connected Devices	2000
Maximum Number of Concurrently Connected Devices (with RAM expansion)	10000
Maximum Number of Synced Files (btrfs)	3,000,000 / single file reaction time 530 ms
Maximum Number of Synced Files (ext4)	3,000,000 / single file reaction time 229 ms
Notes	The maximum number of concurrently connected devices refers to the maximum number of devices that can remain connected at the same time. For more information on file processing capability, please refer to the reaction time for file processing. File reaction time refers to the preparation time required for other devices to start downloading a 10KByte file from a Synology NAS after the file has been added to the NAS. RAM expansion was not used during testing. Non-encrypted shared folders were used during the aforementioned testing.
Document Viewer
Download Station
Maximum Concurrent Download Tasks	80
Drive
Maximum Number of Synced Files	3,000,000 / single file reaction time 244 ms
Maximum Number of Concurrent Connections for PC Clients	1800
Notes	The Btrfs file system was used for the purpose of testing. The maximum number of concurrent connections refers to the maximum number of connections that could be maintained when the maximum number of synced files was reached. File reaction time refers to the preparation time required for other devices to start downloading a 10KByte file from a Synology NAS after the file has been added to the NAS. For tested models with expandable memory, the maximum amount of RAM was installed. Non-encrypted shared folders were used during the aforementioned testing.
exFAT Access (optional)
MailPlus / MailPlus Server
Free Email Accounts	5
Recommended MailPlus Client Number	Up to 400 (Btrfs) / 450 (EXT4)
Maximum Server Performance	2,621,000 (Btrfs) / 2,412,000 (EXT4) emails per day, approx. 80 GB (Btrfs) / 73.6 GB (EXT4)
Notes	The CPU and RAM usages were both under 80% when testing recommended client numbers. For tested models with expandable memory, the maximum amount of RAM was installed. Read-write SSD cache was enabled in 5-bay (and above) NAS models with 2 SSDs units installed. The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers. Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).
Media Server
DLNA Compliance
Moments
Facial recognition
Subject recognition
Office
Maximum Users	2800
Notes	Multiple files were opened for testing and each file was edited by 30 users simultaneously. CPU and RAM usage were both under 80% when the number of maximum users was reached. For tested models with expandable memory, the maximum amount of RAM was installed. Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
PetaSpace
Snapshot Replication
Maximum Snapshots per Shared Folder	1024
Maximum Snapshots of all Shared Folder	65536
Surveillance Station
Maximum IP cam (Licenses required)	75 (including 2 Free License)
Total FPS (H.264)*	2250 FPS @ 720p (1280x720) 2100 FPS @ 1080p (1920×1080) 1500 FPS @ 3M (2048x1536) 900 FPS @ 5M (2591x1944) 550 FPS @ 4K (3840x2160)
Total FPS (H.265)*	2250 FPS @ 720p (1280x720) 2250 FPS @ 1080p (1920×1080) 2250 FPS @ 3M (2048x1536) 1500 FPS @ 5M (2591x1944) 900 FPS @ 4K (3840x2160)
Total FPS (MJPEG)*	720 FPS @ 720p (1280x720) 375 FPS @ 1080p (1920×1080) 250 FPS @ 3M (2048x1536) 180 FPS @ 5M (2591x1944)
Notes	Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera.
Video Station
Video Transcoding	Group 1 - Type 1
Maximum Transcoding Channel Number	1 channel, 30 FPS @ 1080p(1920×1080), H.264 (AVC)/MPEG-4 Part 2 (XVID, DIVX5)/MPEG-2/VC-1
Virtual Machine Manager
Maximum Virtual DSM Number (Licenses required)	8 (including 1 Free License)
Notes	Virtual Machine Manager is not supported on hosts running Synology High Availability.
VPN Server
Maximum Connections	30
Environment & Packaging
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 Accessory Pack X 1 AC Power Cord X 1 Quick Installation Guide X 1
Optional Accessories	Surveillance Device License Pack 8GB DDR4 ECC UDIMM 16GB DDR4 ECC UDIMM Expansion Unit: RX1217/RX1217RP X 2 VS360HD VS960HD Synology RKS1317 - Rail Kit Sliding Synology Ethernet Adapter E10G15-F1 Synology Ethernet Adapter E10G17-F2
